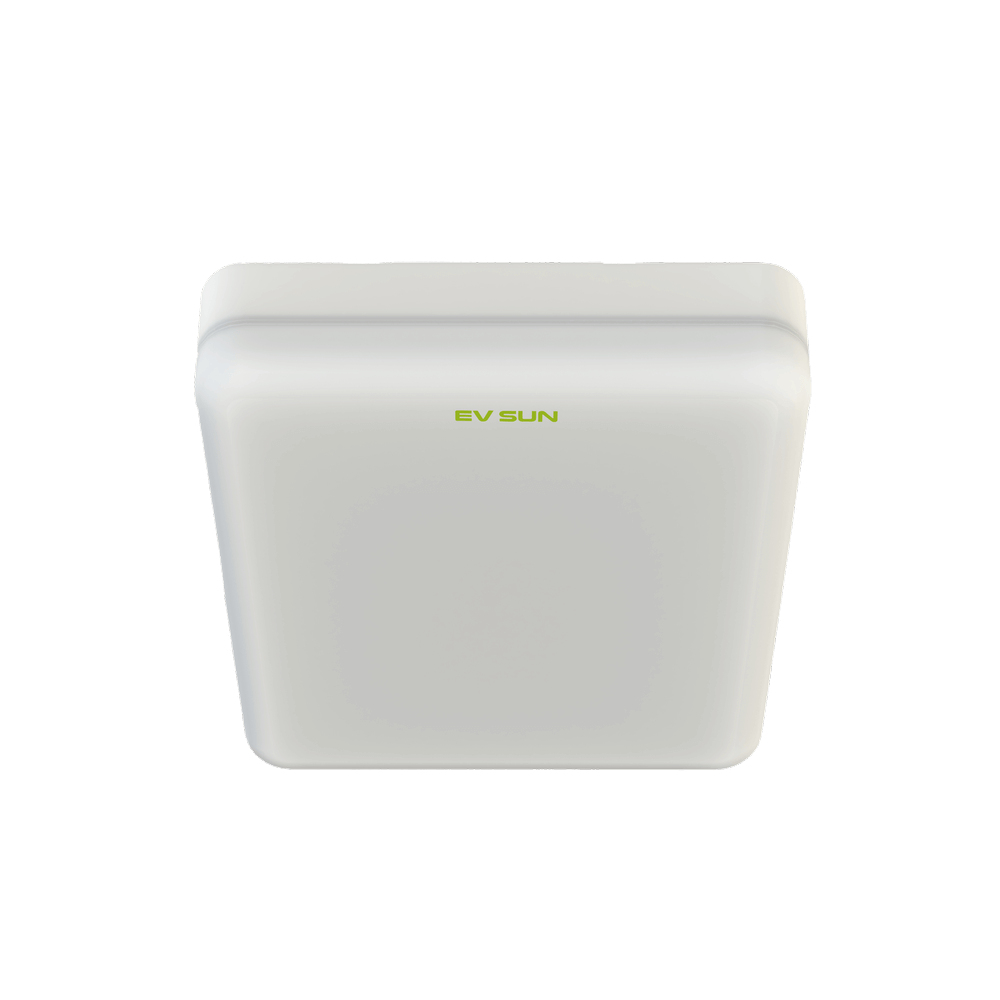

EVLN-SDL surface-mounted lamp (square)
Modern surface-mounted lamp with safe disinfection effect without UV radiation.
Light source
LED
Dimensions
120x120 mm/ 170x170 mm/ 225X225 mm
Power
16 W/ 24 W/ 36 W
Colour temperature
3000 K/ 4000 K/ 6000 K
Mounting
Surface-mounted
CHARACTERISTICS
Sterilisation and comfort for the eyes
The state-of-the-art EVLN-SDL surface-mounted lamps provide 100% safe disinfection using visible light in the appropriate spectrum, eliminating more than 90% microorganisms in the air and on surfaces. Blue technology Light Care Protects eyes by reducing blue light emissions and eliminating flicker. Ideal for homes, offices, hotels and commercial spaces.
APPLICATION

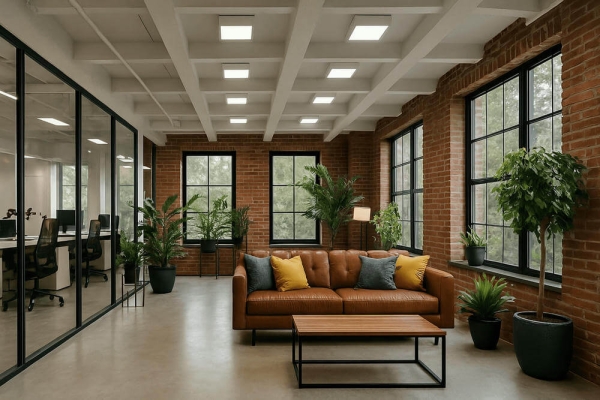

Residential and hotel interiors
Living rooms, kitchens, bathrooms, corridors and reception areas and hotel rooms.
Commercial spaces
Offices, shops, restaurants and cafés - as an even general light.
TECHNOLOGY
Light disinfection
- 100% safe visible light disinfection
- Eliminates more than 90% viruses and bacteria in the air and on surfaces
- Provides a healthier environment
Eye protection
- No flicker effect
- Reduction of blue light emissions
- Technology Blue Care Light (available in selected products)
Energy efficiency
- High power factor >0.9
- Immediate start 100% lights
- Lifespan To 50, 000h
Light efficiency
- Uniform illumination of large areas
Low heat emission
- Zgreater resistance to overheating
Safety and ecology
- W 100% free of hazardous substances
SPECIFICATION
| Model | Power | Shape | Dimensions | Degree of protection | Colour temperature | Luminous flux | Light angle | Energy class | Lifespan |
|---|---|---|---|---|---|---|---|---|---|
| EVLN-SLD-16WS | 16 W | square | 120x120 x H45 mm | IP 20 | 3000 K/ 4000 K/ 6000 K | 1440 lm | 120° | E | up to 50 000 h |
| EVLN-SLD-24WS | 24 W | square | 170x170 x H45 mm | IP 20 | 3000 K/ 4000 K/ 6000 K | 2160 lm | 120° | E | up to 50 000 h |
| EVLN-SLD-36WS | 36 W | square | 225x225 x H45 mm | IP 20 | 3000 K/ 4000 K/ 6000 K | 3240 lm | 120° | E | up to 50 000 h |
CERTIFICATES
Certified technology
We confirm our effectiveness with certifications that make EV SUN technology stands out in the market as a safe and effective lighting solution. Our products, such as the EV LED Nano (EVLN), are SIRIM-certified, which is a internationala high standard of quality and efficiency.
DOCUMENTS TO DOWNLOAD
Product card
Download
