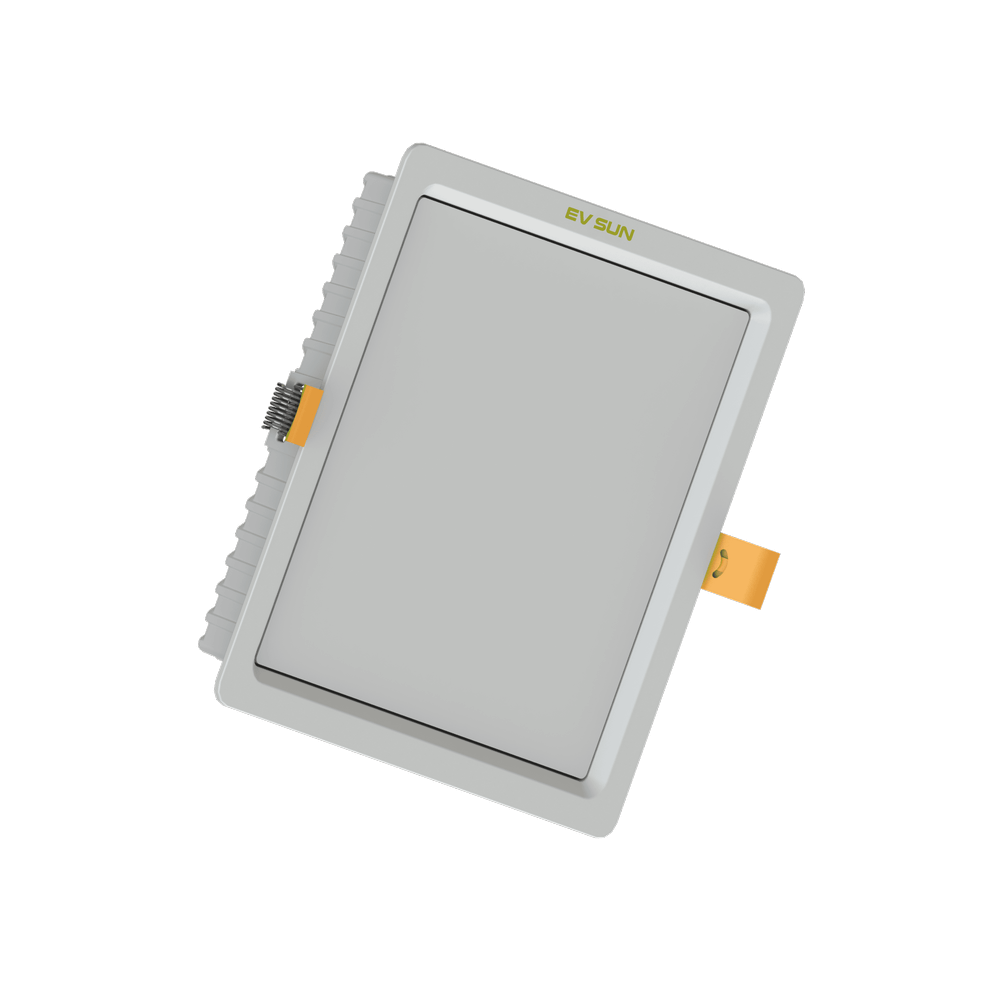

Concealed installation lamp EVLN-DL (square)
Modern flush-mounted lamp with safe disinfection effect without UV radiation.
Light source
LED
Dimensions
130 x 130 mm/ 170 x 170 mm
Power
16 W/ 18 W/ 24 W
Colour temperature
3000 K/ 4000 K/ 6000 K
Mounting
Flush-mounted
CHARACTERISTICS
Discreet lighting with disinfection function
EVLN-DL flush-mounted lamps combine elegant design with advanced disinfection technology, eliminating more than 90% microorganisms. No flicker and blue light reduction provide comfort for the eyes. Perfect for suspended ceilings in homes, offices, restaurants or hospitals. Thanks to their high light output and low heat emission, they are an energy-efficient solution.
APPLICATION

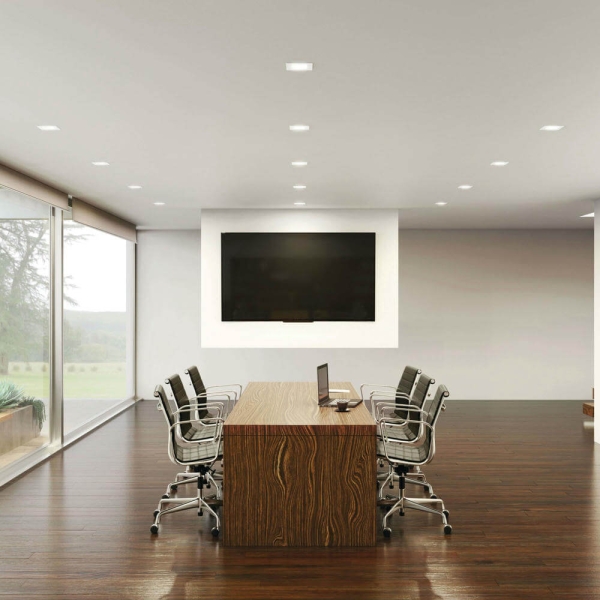

Residential and hotel interiors
For suspended ceilings in homes, hotels, art galleries.
Commercial spaces
Offices and shops - elegant, discreet lighting for larger areas.
TECHNOLOGY
Light disinfection
- 100% safe visible light disinfection
- Eliminates more than 90% viruses and bacteria in the air and on surfaces
- Provides a healthier environment
Eye protection
- No flicker effect
- Reduction of blue light emissions
- Technology Blue Care Light (available in selected products)
Energy efficiency
- High power factor >0.9
- Immediate start 100% lights
- Lifespan To 50, 000h
Light efficiency
- Uniform illumination of large areas
Low heat emission
- Zgreater resistance to overheating
Safety and ecology
- W 100% free of hazardous substances
SPECIFICATION
| Model | Power | Shape | Dimensions | Mounting hole | Degree of protection | Colour temperature | Luminous flux | Light angle | Energy class | Lifespan |
|---|---|---|---|---|---|---|---|---|---|---|
| EVLN-DL-16WS | 16 W | square | 130x130 x H45 mm | 110x110 mm | IP 20 | 3000 K/ 4000 K/ 6000 K | 1680 lm | 120° | E | up to 50 000 h |
| EVLN-DL-18WS | 18 W | square | 170x170 x H45 mm | 130x130 mm | IP 20 | 3000 K/ 4000 K/ 6000 K | 1890 lm | 120° | E | up to 50 000 h |
| EVLN-DL-24WS | 24 W | square | 170x170 x H45 mm | 154x154 mm | IP 20 | 3000 K/ 4000 K/ 6000 K | 2520 lm | 120° | E | up to 50 000 h |
CERTIFICATES
Certified technology
We confirm our effectiveness with certifications that make EV SUN technology stands out in the market as a safe and effective lighting solution. Our products, such as the EV LED Nano (EVLN), are SIRIM-certified, which is a internationala high standard of quality and efficiency.
