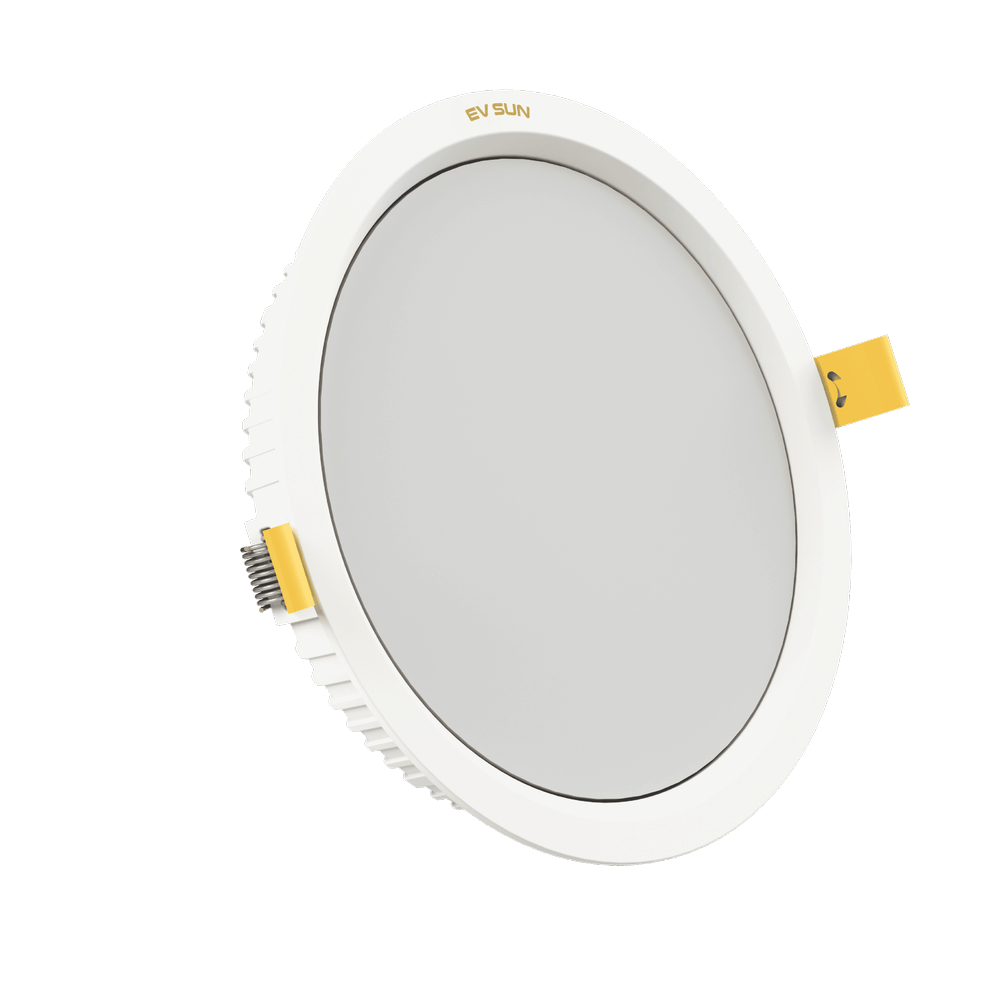

Concealed installation lamp EVLN-DL (round)
Modern flush-mounted lamp with UV-free safe sterilisation effect.
Light source
LED
Dimensions
130 mm/ 170 mm
Power
16 W/ 18 W/ 24 W
Colour temperature
3000 K/ 4000 K/ 6000 K
Mounting
Flush-mounted
CHARACTERISTICS

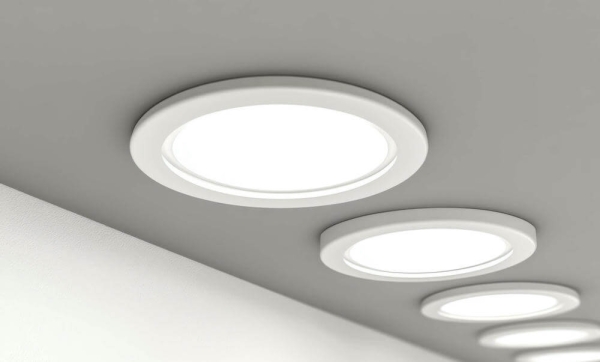

Discreet lighting with sterilisation function
EVLN-DL flush-mounted lamps combine elegant design with advanced sterilisation technology, eliminating more than 90% of bacteria and viruses. No flicker and blue light reduction provide comfort for the eyes. Perfect for suspended ceilings in homes, offices, restaurants or hospitals. Thanks to their high light output and low heat emission, they are an energy-efficient solution.
APPLICATION
Utility and educational facilities
Schools, hospitals, galleries and domestic utility spaces.
Catering and service areas
Discreet lighting in restaurants, clinics and waiting rooms.
TECHNOLOGY
Sterilisation with light
- 100% safe sterilisation through resonance technology
- Eliminates more than 90% viruses and bacteria in the air and on surfaces
- Provides a healthier environment
Eye protection
- No flicker effect
- Reduction of blue light emissions
- Technology Blue Care Light (available in selected products)
Energy efficiency
- High power factor >0.9
- Immediate start 100% lights
- Lifespan To 50, 000h
Light efficiency
- Uniform illumination of large areas
Low heat emission
- Zgreater resistance to overheating
Safety and ecology
- W 100% free of hazardous substances
SPECIFICATION
| Model | Power | Shape | Dimensions | Mounting hole | Degree of protection | Colour temperature | Luminous flux | Light angle | Energy class | Lifespan |
|---|---|---|---|---|---|---|---|---|---|---|
| EVLN-DL-16WR | 16 W | circular | 130 x H29 mm | φ110 | IP 20 | 3000 K/ 4000 K/ 6000 K | 1680 lm | 120° | E | up to 50 000 h |
| EVLN-DL-18WR | 18 W | circular | 170 x H29 mm | φ130 | IP 20 | 3000 K/ 4000 K/ 6000 K | 1890 lm | 120° | E | up to 50 000 h |
| EVLN-DL-24WR | 24 W | circular | 170 x H29 mm | φ154 | IP 20 | 3000 K/ 4000 K/ 6000 K | 2520 lm | 120° | E | up to 50 000 h |
CERTIFICATES
Certified technology
We confirm our effectiveness with certifications that make EV Sun technology stands out in the market as a safe and effective lighting solution. Our products, such as the EV LED Nano (EVLN), are SIRIM-certified, which is a internationala high standard of quality and efficiency.
